Flexible workstations for a wide variety of paint & prep processes. Excel Workstations are constructed of standard panel sizes, allowing multiple length width and height options to suit any shop layout.
These Workstations are constructed of standard panel sizes, allowing multiple length, width and height options to suit any shop layout. Flexible workstations developed to meet the requirements set forth in EPA Federal Register 40 CFR sub part 63 HHHHHH and NFPA.
EPA 6H Rule For Spraying In Collision Repair Shops
Effective January 10, 2011 all collision shops in the United States will be required to comply with the EPA's new 6H Rule for spraying. Open-air spraying will no longer be allowed in any capacity within a collision repair shop. All spraying must be done in an enclosed enviroment that meets the standards set forth in the Rule.
Complete details on the rule can be found here:
Ceiling Light Layout
High-efficiency color- corrected lights are arranged in the ceiling toward the outer edge of the plenum to allow for complete illumination of the entire vehicle.

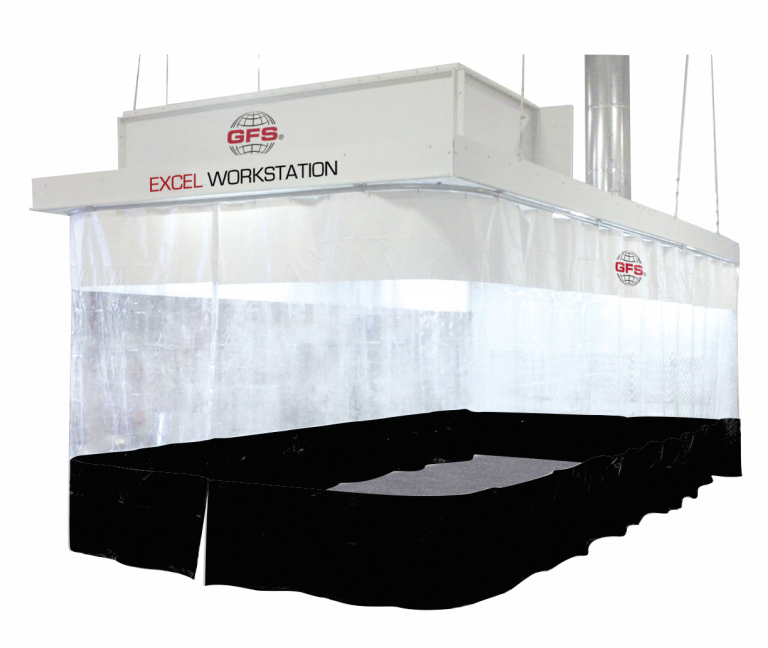

EXCEL Workstations can easily be configured to be free-standing
with structural steel supports (shown) or suspended from the shop ceiling.
GFS filters supplied with the EXCEL Workstations are certified to pass the ASHRAE test for 98% filter efficiency for excellent contamination control.
EXCEL Workstations are constructed of standard panel sizes, allowing multiple length width and height options to suit any shop layout.
- Semi-downdraft airflow
- 24" tube axial exhaust fan with 1-hp high-efficiency motor
- Double width, double inlet, forward-curved intake fan with 2-hp high-efficiency motor
- Filter monitoring gauge
- ETL-listed, 4-tube fluorescent light fixtures:
- 5 fixtures on 24' length
- 6 fixtures on 27' length
- 7 fixtures on 30' length
- Heavy-duty, non-combustible curtain walls
- Ceiling supported by columns or building ceiling
- Solid back or drive through configuration
- Single or dual workstation plenums
- Designed to meet EPA 6H Rule requirements, allowing the facility to perform spray operations
- Code Compliant
- Single-Bay Widths: 12’, 14’
- Height: 9', 12'
- Lengths: 24', 27', 30'
- Support structure
- 6-tube light fixtures
The WAVE Aqua filter is engineered for maximum performance in shops spraying waterborne paints. GFS WAVE Aqua paint booth filters provide the highest level of removal efficiency with waterborne paints.
