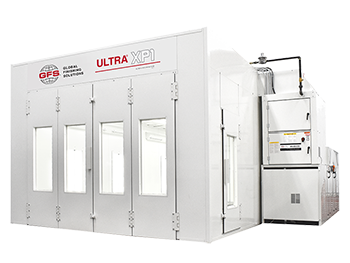

Ultra XP1

Control Panel

LOGIC 4 Control Panel

The fully-loaded LOGIC 4 control panel provides complete control over your booth, with the ability to easily switch from a waterborne user interface to a solvent base interface.

At the touch of a button, you have controls for AdvanceCure®, SmartCure® and Smart Flash. The panel even comes with Filter Monitoring and Economy Mode functions, saving you time and money. The LOGIC 4 boasts a 10-inch color user interface, providing ease of use and displaying more information on each screen so users can operate the booth quicker and more efficiently.

Heater

GUL2000 Heat Unit

• Pre- and post-filtration
• Automatic pressure control (Auto Balance)
• Dual high limit switches
• Dual VFD package
• Door safety interlock switch, 24V
• 90/10 air recirculation during cure cycle
• LOGIC 3 control panel
• 34 in. round intake and exhaust duct for 15 ft. roof

Ultra XP1 Heater Options

The following options can be added to the GUL2000 Heat Unit:

• 15 hp motor upgrade
• 1.5 MBTU upgrade
• LOGIC 4 control panel
• Filter monitoring
• LoNox burner
• Low pressure burner

Airflow & Contamination Control
With a unique 14 ft. wide ceiling plenum, GFS' patented Controlled Airflow Ceiling increases the booth's spray zone. The main airflow zone in the Controlled Airflow Ceiling creates a protective envelope of air around the vehicle, while secondary airflow zones protect booth walls from overspray and keep contaminants out of the paint job.

Lighting

Six-tube sidewall lights and premium angled ceiling light fixtures, integrated into the Controlled Airflow Ceiling and located directly above the vehicle for optimal illumination. Light fixtures are ETL and ETL-C listed, and come complete with T8 ballasts and color-corrected tubes.

Flashing & Curing

SmartFlash and SmartCure® technology on the standard Logic 4 Control Panel enable users to create up to three SmartFlash and six SmartCure profiles to set up booth cycles to quickly cure coatings. Ultra XP1 Paint Booths also include the integrated AdvanceCure Blade® System, which uses turbulent airflow to cut cure times in half, saving time and energy.

Energy Savings

Shops can save up to 60 percent in electricity and 75 percent in fuel costs with economy mode, which automatically ramps the booth down and runs on idle when the booth is not in use. Providing further energy savings, SmartFlash on the Logic 4 control panel allows up to 90 percent of the air to be recirculated during flash mode.
