Description
One of GFS’ most popular automotive refinish booths

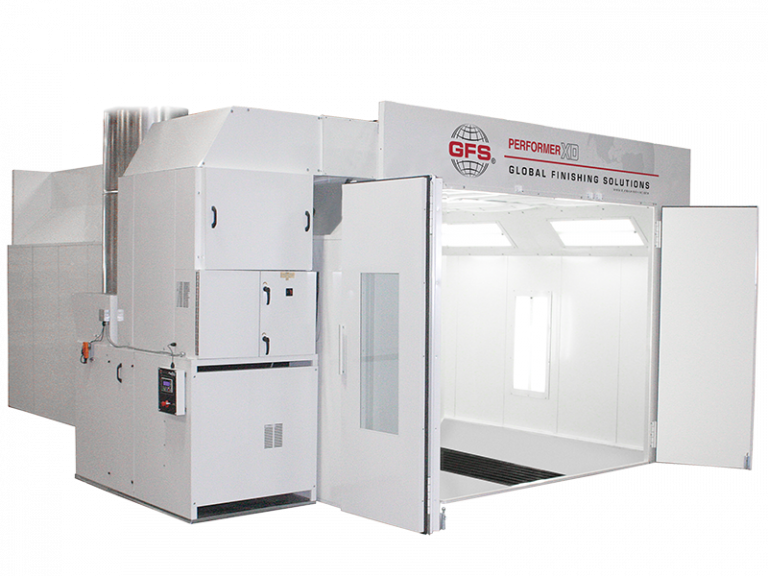

Perfect for small to medium-sized body shops, the Performer XD is an affordable spray booth with all the key features that you expect to see in a top-of-the-line paint booth.
Control Panel
Engage™
The Engage™ control panel features a simplified, easy-to-use touch screen interface with enhancements such as improved temperature and pressure control and alarm tracking for better, more reliable booth performance.
Heater
BT1200 Heat Unit
Highly versatile, GFS’ BT1200 heat unit can be placed on the side or rear of a paint booth, and is available in both recirculating and forced-dry models. SpaceSaver heat systems are also available.
Airflow
Performer XD Paint Booths come standard with GFS’ High-Performance Airflow Ceiling in downdraft or semi-downdraft airflow models. The full-filtered ceiling provides excellent air filtration and contamination control.
Lighting
Designed for optimal brightness, Performer XD spray booths feature four-tube sidewall lights and hip-style lights. All GFS light fixtures are ETL and ETL-C listed, and come complete with T8 ballasts and color-corrected tubes.
Construction
Manufactured at our U.S. facility, Performer XD spray booths are made with dual-skin insulated, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish.
Doors
A three-wing, dual-skin product door — with one observation windows — and one personnel door come standard with Performer XD Booths. Doors feature heavy-duty hinges for long-lasting performance.
Specifications
27' DOWNDRAFT
- Heat System BTRC
- Internal Dimensions (W x H x L) 14′ x 9′ x 27′
- External Dimensions (W x H x L) 14′ 5″ x 11′ x 27′ 5″
- 4-Tube Ceiling Lights 8
- 4-Tube Sidewall Lights 4
- Dual-Row Pit Length 24′
30' DOWNDRAFT
- Heat System SpaceSaver
- Internal Dimensions (W x H x L) 14′ x 9′ x 30′
- External Dimensions (W x H x L) 14 ‘5″ x 14′ 6″ x 30’ 8″
- 4-Tube Ceiling Lights 8
- 4-Tube Sidewall Lights 4
- Dual-Row Pit Length 27′
27' SEMI-DOWNDRAFT
- Heat System BTFD
- Internal Dimensions (W x H x L) 14′ x 9′ x 27′
- External Dimensions (W x H x L) 14′ 5″ x 11′ x 27′ 5″
- 4-Tube Ceiling Lights 8
- 4-Tube Sidewall Lights 4
- Dual-Row Pit Length No Pit
30' SEMI-DOWNDRAFT
- Heat System SpaceSaver
- Internal Dimensions (W x H x L) 14′ x 9′ x 30′
- External Dimensions (W x H x L) 14′ 5″ x 14′ 6″ x 30′ 8″
- 4-Tube Ceiling Lights 8
- 4-Tube Sidewall Lights 4
- Dual-Row Pit Length No Pit
Options
The following options can be added to a Performer® XD booth:
- Two or three-row pit (downdraft only)
- Raised basement (downdraft only)
- Drive-thru configuration (four-wing door not available on semi-downdraft models)
- AdvanceCure Accelerated Airflow System
- Six-tube light fixtures
- LED lamps or light reflectors
- Four or six-tube corner or sidewall light fixtures
- Control panel upgrade
- Exhaust yoke (adds 3 ft. 3 in. to internal working space) semi-downdraft only
- Additional product door windows
Filters
The WAVE Aqua filter is engineered for maximum performance in shops spraying waterborne paints. GFS WAVE Aqua paint booth filters provide the highest level of removal efficiency with waterborne paints.
A complete listing of paint booth filters and replacement parts available for all Global Finishing Solution Paint Booths
