Ultra XD

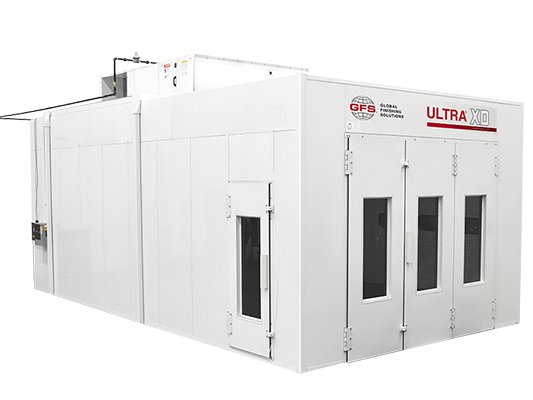

The Ultra XD paint booth leads the industry in versatility and performance. With a choice of high-efficiency heat systems, intuitive control panels, and downdraft or semi-downdraft airflow – the Ultra XD will exceed any body shop’s expectations.

Download Brochure

Contact a Sales Rep

Control Panel

The Ultra XD Paint Booth comes standard with an easy-to-use Engage control panel. A touch screen interface and enhancements such as improved temperature and pressure control and alarm tracking allow for better, more reliable booth performance. Upgrading to the LOGIC 3 or LOGIC 4 control panel provides additional functionality and user-programmable features such as SmartFlash and SmartCure profiles.


Doors
A three-wing, dual-skin product door — with three observation windows — and one personnel door come standard with each pre-engineered Ultra XD Booth. Doors feature heavy-duty hinges for long-lasting performance.


Airflow

Ultra XD Paint Booths come standard with GFS’ patented Controlled Airflow Ceiling (in downdraft models) or the High-Performance Airflow Ceiling (in semi-downdraft models). Both ceilings allow for even distribution of air throughout the booth, providing excellent air filtration and precise contamination control.


Lighting

Designed for optimal brightness, Ultra XD spray booths feature four-tube sidewall lights and either premium angled ceiling light fixtures (integrated into the Controlled Airflow Ceiling) or hip-style lights (with the High-Performance Airflow Ceiling). All GFS light fixtures are ETL and ETL-C listed, and come complete with T8 ballasts and color-corrected tubes.


Construction

Manufactured at our U.S. facility, Ultra XD spray booths are made with dual-skin insulated, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish.


Energy Savings

Shops can save up to 60 percent in electricity and 75 percent in fuel costs with economy mode, which automatically ramps the booth down and runs on idle when the booth is not in use. Providing further energy savings, SmartFlash on optional Logic controls allows up to 90 percent of the air to be recirculated during flash mode.

More Features

  • Single-row pit (downdraft only)
  • Floor leveling system
  • Choice of GFS’ GUL2000, BT1200 or SpaceSaver® heat system (dependent on airflow)

24' DOWNDRAFT (BTRC OR GUL)

  • Heat System BTRC or GUL
  • Internal Dimensions (W xH x L) 14′ x 9′ x 24′
  • External Dimensions (W xH x L) 14’5″ x 11′ x 24’5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 4
  • Single-Row Pit Length 21′

24' DOWNDRAFT (SPACESAVER)

  • Heat System SpaceSaver
  • Internal Dimensions (W xH x L) 14′ x 9′ x 24′
  • External Dimensions (W xH x L) 15′ 4″ x 14′ 7″ x 24’5″
  • 4-Tube Ceiling Lights 6
  • 4-Tube Sidewall Lights 4
  • Single-Row Pit Length 21′

27' DOWNDRAFT (BTRC OR GUL)

  • Heat System BTRC or GUL
  • Internal Dimensions (W xH x L) 14′ x 9′ x 27′
  • External Dimensions (W xH x L) 14′ 5″ x 11′ x 27′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6
  • Dual-Row Pit Length 24′

27' DOWNDRAFT (SPACESAVER)

  • Heat System SpaceSaver
  • Internal Dimensions (W xH x L) 14′ x 9′ x 27′
  • External Dimensions (W xH x L) 15′ 4″ x 14′ 7″ x 27’5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6
  • Dual-Row Pit Length 24′

30' DOWNDRAFT (BTRC OR GUL)

  • Heat System BTRC or GUL
  • Internal Dimensions (W xH x L) 14′ x 9′ x 30′
  • External Dimensions (W xH x L) 14′ 5″ x 11′ x 30′ 5″
  • 4-Tube Ceiling Lights 10
  • 4-Tube Sidewall Lights 6
  • Dual-Row Pit Length 27′

30' DOWNDRAFT (SPACESAVER)

  • Heat System SpaceSaver
  • Internal Dimensions (W xH x L) 14′ x 9′ x 30′
  • External Dimensions (W xH x L) 15′ 4″ x 14′ 7″ x 30′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6
  • Dual-Row Pit Length 27′

24' SEMI-DOWNDRAFT (BTFD)

  • Heat System BTFD
  • Internal Dimensions (W xH x L) 14′ x 9′ x 24′
  • External Dimensions (W xH x L) 14′ 5″ x 11′ x 24′ 5″
  • 4-Tube Ceiling Lights 6
  • 4-Tube Sidewall Lights 4

27' SEMI-DOWNDRAFT (BTFD)

  • Heat System BTFD
  • Internal Dimensions (W xH x L) 14′ x 9′ x 27′
  • External Dimensions (W xH x L) 14′ 5″ x 11′ x 27′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6

27' SEMI-DOWNDRAFT (SPACESAVER)

  • Heat System SpaceSaver
  • Internal Dimensions (W xH x L) 14′ x 9′ x 27′
  • External Dimensions (W xH x L) 15′ 4″ x 12′ 7″ x 27′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6

30' SEMI-DOWNDRAFT (BTFD)

  • Heat System BTFD
  • Internal Dimensions (W xH x L) 14′ x 9′ x 30′
  • External Dimensions (W xH x L) 14′ 5″ x 11′ x 30′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6

30' SEMI-DOWNDRAFT (SPACESAVER)

  • Heat System SpaceSaver
  • Internal Dimensions (W xH x L) 14′ x 9′ x 30′
  • External Dimensions (W xH x L) 15′ 4″ x 12′ 7″ x 30′ 5″
  • 4-Tube Ceiling Lights 8
  • 4-Tube Sidewall Lights 6

Options

The following pre-engineered options can be added to GFS Ultra XD Paint Booths:

  • AdvanceCure® Accelerated Airflow System
  • Four-wing, dual-skin product door
  • Two- or three-row pit upgrade (downdraft only)
  • Six-tube light fixtures
  • LED lamps or light reflectors
  • Raised basement (downdraft only; adds 13 in. to the overall height of the booth)
  • Drive-thru configuration
  • Additional sidewall lights
  • Sidewall observation windows

Filters

GFS WAVE Aqua Paint Booth Filter

The WAVE Aqua filter is engineered for maximum performance in shops spraying waterborne paints. GFS WAVE Aqua paint booth filters provide the highest level of removal efficiency with waterborne paints.

Paint Booth Parts & Filters

A complete listing of paint booth filters and replacement parts available for all Global Finishing Solution Paint Booths
