Professional

Ultra Plus 1

For a reliable, easy-to-use paint booth that provides versatility and energy savings, the Professional spray booth answers the call.

Download Brochure

Contact a Sales Rep

Professional dual-skin insulated booths provide exceptional performance and exceptional value. By utilizing a proven cabin design and incorporating high-efficiency components, the Professional is ideal for high-production shops looking for a durable, reliable paint booth that provides energy-savings.

Description

Deluxe Dual-Skin Booth

For paint and body shops looking for a reliable, easy-to-use paint booth that provides versatility and energy savings, the Professional spray booth answers the call. Dual-skin insulated construction, full downdraft airflow, superior lighting and a choice of high-efficiency heat systems give the Professional the ability to fit any shop, anywhere.


Control Panel

control panel

AXIOM Control Panel

The AXIOM control panel is a simplified, easy-to-use control system. The intuitive display provides continuous updates of the system control of operation and faults.

Features

  • 4” touch-pad interface
  • Spray, cure and flash cycles
  • Auto pressure control
  • Lighting controls
  • 18 system faults/warning codes
  • Optional: Controls for economy mode

Heater

heater

BT1200 Air Heater

  • 10 hp direct-drive intake motor
  • 5 hp belt-drive exhaust motor
  • 34" tube-axial exhaust fan
  • 12,000 CFM
  • 1.2 MBTU direct-fire burner
  • Auto pressure control
  • Recirculating standard on downdraft models

BT1200 Optional Equipment

  • Non-heated units available
  • 1.5 MBTU upgrade
  • 15 hp intake motor upgrade
  • Twin variable frequency drive (VFD) packages
  • Natural gas or propane fuel options
  • Side, rear or roof-mounted units available

AdvanceCure Accelerated Airflow System

AdvanceCure Accelerated Airflow System

Adding AdvanceCure to the interior of the booth vastly improves the productivity of the equipment. AdvanceCure introduces controlled turbulence into the paint booth during the flash-off and cure cycles to rapidly draw vapors out of the painted surfaces. This increased airflow dramatically reduces the amount of time required for each paint job, and in turn, increases the profitability of your body shop. AdvanceCure speeds curing of both solvent-based and waterborne paints, so You can be sure that your finishing operation will improve today, and well into the future.

Fully Integrated Option

Fully Integrated Option

The AdvanceCure system has the capability to be fully integrated into Vertex and Professional series products. The integration of the system eliminates the need to cut holes into the walls, and also eliminates the need for any additional ducts or motors that protruded through the sidewalls of the booth.  The Integrated AdvanceCure system draws air from the booth work area through the intake filter located in the filter ceiling. This air travels through ductwork in the plenum to the fan mounted on the roof of the booth. From there the air is discharged back through ductwork to the nozzle plenum and discharged in a high velocity, turbulent, airstream.

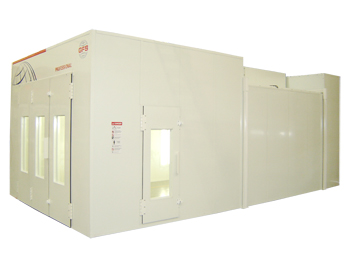

Spacesaver Option

Spacesaver Option

GFS' exclusive roof-integrated SpaceSaver heat system is engineered to provide high performance in a low profile package, opening up new possibilities for booth placement and body shop arrangement for businesses that are space conscious.

  • Low Profile Cabin Footprint
  • Superior Air Movement
  • Intuitive PLC Controls

Professional Downdraft Dimensions

  • Internal: 14' w x 9' h x 27' l
  • External: 15' 3 1/2" w x 14' 9 1/4" h x 27' 5" l (13' 7" high with direct drive fan)

Professional Semi-Downdraft Dimensions

  • Internal: 14' w x 9' h x 27' or 30' l
  • External: 15' 3 1/2" w x 12' 8 3/4" h x 27’ 5” or 30' 5” l (11' 6 1/2" high with direct-drive fan)

Features

  • 3-wing entry door, 9' 8" w x 8' 8 3/4" h
  • Full downdraft airflow for spray and cure
  • White pre-coated galvanized steel
  • Dual-skin insulated panel construction
  • High-performance airflow ceiling (HPAC)
  • Light wiring harness and limit switch
  • One personnel access door with observation window
  • Booth pressure balancing gauge
  • AXIOM control panel
  • BT 1200 recirculating heat group
  • Code Compliant

Specifications

Dimensions:

Downdraft 24' Length Model

  • Internal: 14' w x 9' h x 24' l
  • External: 14' 5" w x 11' h x 24' 5" l
  • Eight 4-tube hip light fixtures
  • Four 4-tube sidewall light fixtures
  • Single-row pit (21' long)

Downdraft 27' Length Model

  • Internal: 14' w x 9' h x 27' l
  • External: 14' 5" w x 11' h x 27' 5" l
  • Eight 4-tube hip light fixtures
  • Six 4-tube sidewall light fixtures
  • Single-row pit (24' long)

Downdraft 30' Length Model

  • Internal: 14' w x 9' h x 30' l
  • External: 14' 5" w x 11' h x 30' 5" l
  • Ten 4-tube hip light fixtures
  • Six 4-tube sidewall light fixtures
  • Single-row pit (27' long)

Options

  • 4- or 6-tube corner light fixtures
  • Drive-thru configuration
  • Ultra heat system
  • Booth basement (for installations where pit extraction isn’t possible)
  • Two- and three-row pit upgrades
  • 4-door frontal
  • LOGIC 3 or 4 control panel
  • AdvanceCure accelerated airflow system
  • ECO package (must purchase optional economy mode & AdvanceCure)
  • Available with SpaceSaver heater

Filters

GFS WAVE Aqua Paint Booth Filter

The WAVE Aqua filter is engineered for maximum performance in shops spraying waterborne paints. GFS WAVE Aqua paint booth filters provide the highest level of removal efficiency with waterborne paints.
